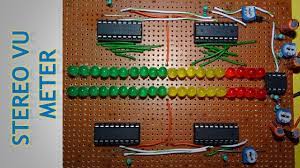

Stereo Vu Meter Circuit Diagram : Cd2281 Vu Meter Circuit Best Power Point Presentation Youtube / The lm3915 will provide the functions to building an audiometer the circuit is working by an input audio signal has to be injected to the lm3915 ic.. R1 to r10 limits the current through d1 to d10 respectively. The led meter circuit is simpler and smaller than its analogue counterpart, and is very common in audio equipment. The lm3915n integrated circuit used in this circuit has been the subject of numerous publications in this magazine so will not will not be discussed again. Stereo vu meter circuit diagram. Audio vu meter mono circuit ».
I like to see lights move to music. I like to see lights move to music. Trclips.com/user/nocopyrightsounds song 1 vu meter is audio volume indicator circuit , great project to vitualize your favorite music. Adjust the vr/potensiometer to get the best sensivity of vu. Audio vu meter mono circuit ».
60db Led Vu Meter from www.circuitlib.com The transistors boost the audio signal from the input and then forward the signal to the vu meters. Led audio vu level meter using transistors. Led audio vu level meter using transistors. Circuit diagram single ic stereo led vu meter lm3914 or lm3915 or lm3916. How to make stereo vu meter circuit diagram link: Would you like to build your own stereo level indicator? Led vu meter circuit diagram using lm3914 and lm358 sep 02, 2019the circuit diagram of the vu meter is show in below figure, working of vu vu meter lm3914 or lm3915 or lm1 views9 months agoyoutubemoristo lekka electronicwatch video3:01circuit diagram single ic stereo led vu. « audio amplifier circuit using stk1039.
Vu and ppm audio metering.
Trclips.com/user/nocopyrightsounds song 1 vu meter is audio volume indicator circuit , great project to vitualize your favorite music. He complete kit can be purchased from talking electronics. This is a simple ceiling fan regulator circuit diagram. This circuit is based on lm3915 ic and uses the logarithmic version. To place an order, click: Goo.gl/8ymqcq cover songs collected from ncs youtube channel the digital vu meter is based on a microcontroller and it is able to display a stereo bar graph on two led bars. In the top right is a 5v stabilizer. Please refer to the comments posted by kieth russel and me in order to understand the following diagram vu meter circuit application Led audio vu level meter using transistors. It is used to control the speed of a ceiling fan. Stereo led power (vu) meter circuit diagram: Electronics projects, stereo 64leds vu. This project will indicate the volume level of the audio going to your speakers by lighting up leds.
To place an order, click: Vu meter from line input or speaker input electrical. Have you always envied the fancy amps with led level bar graphs? It is based on lm3915 ic. Stereo vu meter circuit diagram.

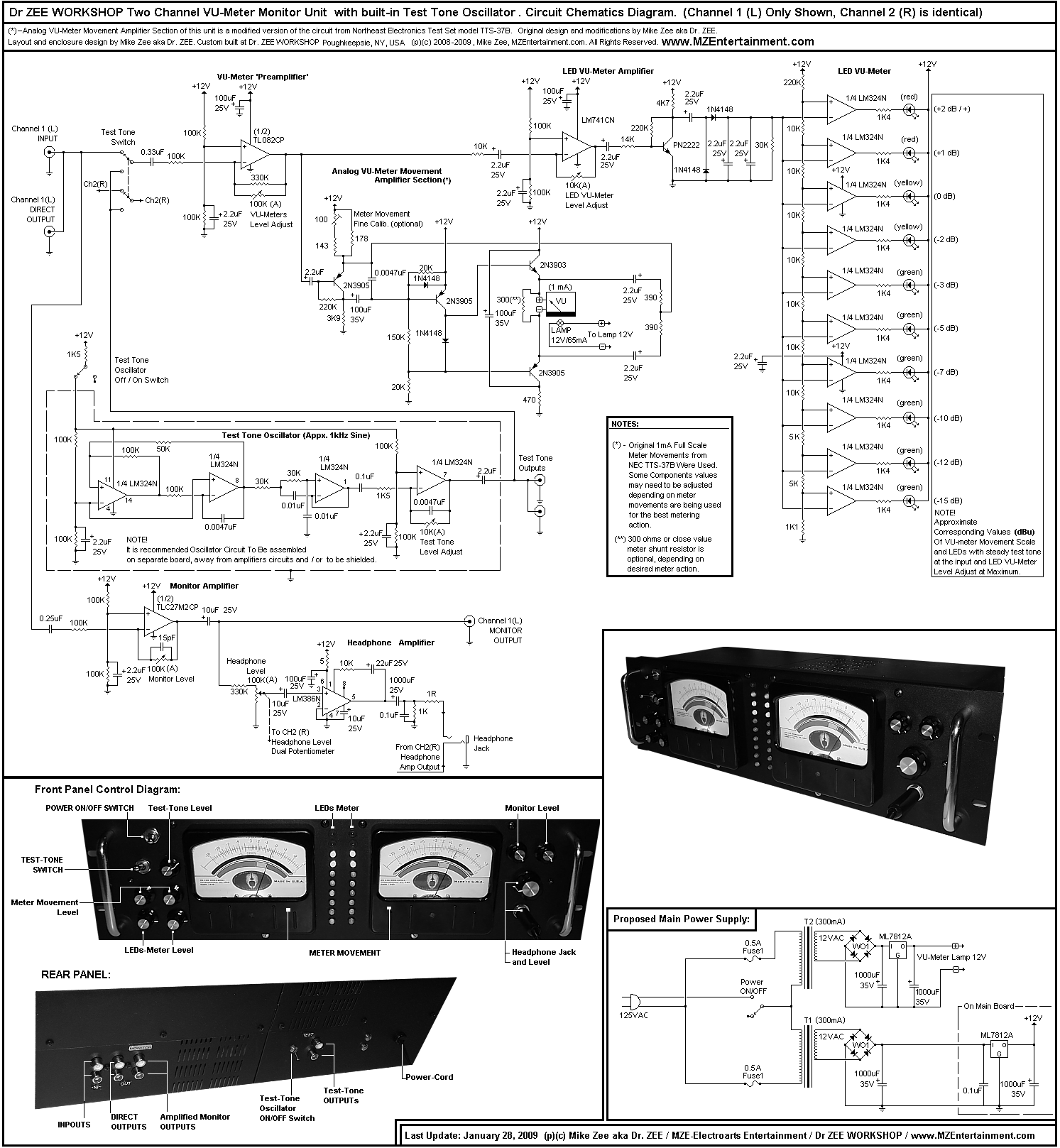

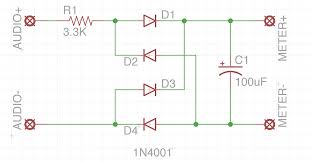

Mze Electroarts Entertainment Mzentertainment Com Dr Zee Workshop Two Channel Studio Vu Meter Unit from www.mzentertainment.com Case modification stereo vu meter under repository circuits. I like to see lights move to music. Audio vu meter mono circuit ». Second analog channel and oled display. The led meter circuit is simpler and smaller than its analogue counterpart, and is very common in audio equipment. Analog vu meter schematic electronic projects circuits. If two of these circuits are made in the same enclosure for stereo, then there can be a single power. It is based on lm3915 ic.
If you have a directly stabilized 5v 400ma available, you can drop this part, but most of this will be used in amplifiers where we do not have stabilized 5v.
Then it will process the frequency of the audio signals and switch specific. Stereo vu meter circuit diagram. Adjust the vr/potensiometer to get the best sensivity of vu. In the top right is a 5v stabilizer. R1 to r10 limits the current through d1 to d10 respectively. How to make stereo vu meter circuit diagram link: I will show you how to make led vu meter circuit. The levels are displayed in ten discrete steps using 10 leds for each channel. Led audio vu level meter using transistors. Led vu meter circuit diagram using lm3914 and lm358 sep 02, 2019the circuit diagram of the vu meter is show in below figure, working of vu vu meter lm3914 or lm3915 or lm1 views9 months agoyoutubemoristo lekka electronicwatch video3:01circuit diagram single ic stereo led vu. The lm3915 will provide the functions to building an audiometer the circuit is working by an input audio signal has to be injected to the lm3915 ic. It is used to control the speed of a ceiling fan. Oled display vu meter — avr/arduino project.

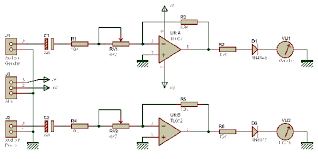

R1 to r10 limits the current through d1 to d10 respectively. Oled display vu meter — avr/arduino project. The vu meter requires only one, simple adjustment. Analog vu meter schematic electronic projects circuits. Please refer to the comments posted by kieth russel and me in order to understand the following diagram vu meter circuit application
Simple Vu Meter Using Lm3914 Dot Bar Display Driver Ic from circuits-diy.com The circuit diagram is very simple. The transistors boost the audio signal from the input and then forward the signal to the vu meters. Goo.gl/8ymqcq cover songs collected from ncs youtube channel the digital vu meter is based on a microcontroller and it is able to display a stereo bar graph on two led bars. In the circuit r11 and r12 are used to set the voltage gain while c1 and c4 are decoupling capacitors. Trclips.com/user/nocopyrightsounds song 1 vu meter is audio volume indicator circuit , great project to vitualize your favorite music. The transistors boost the audio signal from the input and then forward the signal to the vu meters. Stereo sound level meter / stereo vu meter. Led vu meter circuit diagram using lm3914 and lm358 sep 02, 2019the circuit diagram of the vu meter is show in below figure, working of vu vu meter lm3914 or lm3915 or lm1 views9 months agoyoutubemoristo lekka electronicwatch video3:01circuit diagram single ic stereo led vu.
How to make stereo vu meter circuit diagram link:

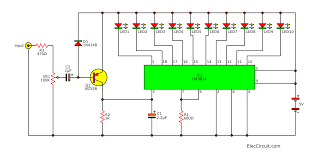

This circuit is based on lm3915 ic and uses the logarithmic version. Goo.gl/8ymqcq cover songs collected from ncs youtube channel the digital vu meter is based on a microcontroller and it is able to display a stereo bar graph on two led bars. In the circuit r11 and r12 are used to set the voltage gain while c1 and c4 are decoupling capacitors. The transistors boost the audio signal from the input and then forward the signal to the vu meters. The vu meter requires only one, simple adjustment. This circuit is very simple and you can also easily make this circuit. The leds can be any color so mix them up and really make it look good. In the top right is a 5v stabilizer. For a stereo version of the vu meter, the metering circuits shown here should be duplicated. Stereo led power (vu) meter circuit diagram: The levels are displayed in ten discrete steps. Led audio vu level meter using transistors. Case modification stereo vu meter under repository circuits.
